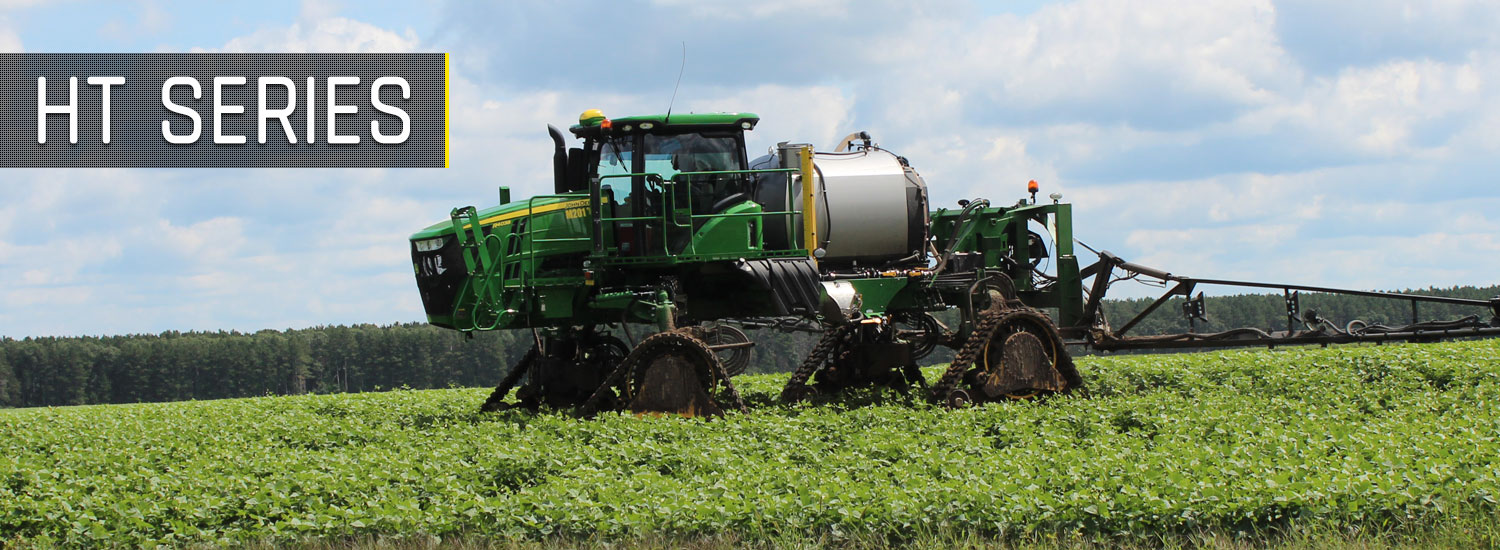

HT Series
442 Payment Plan

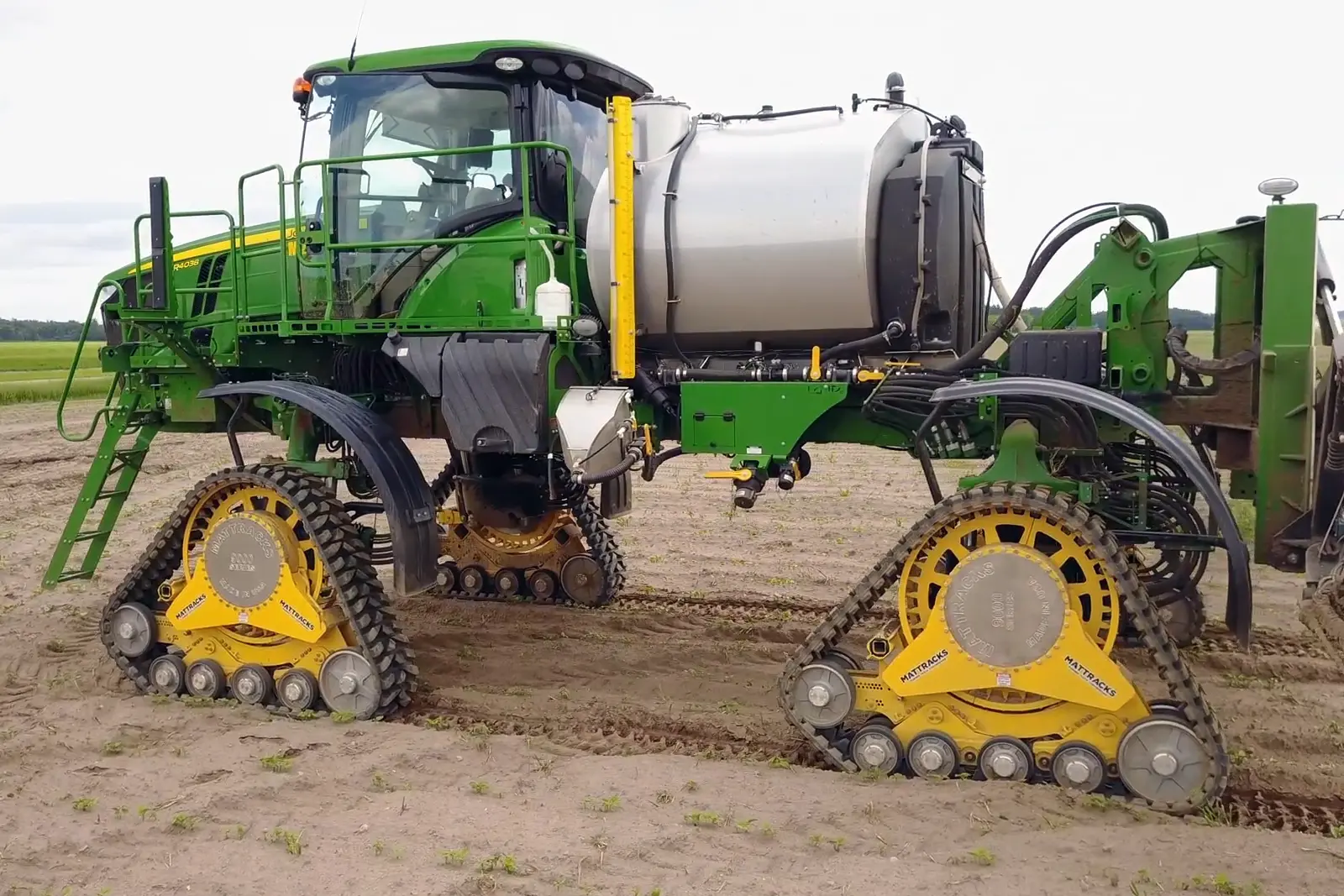

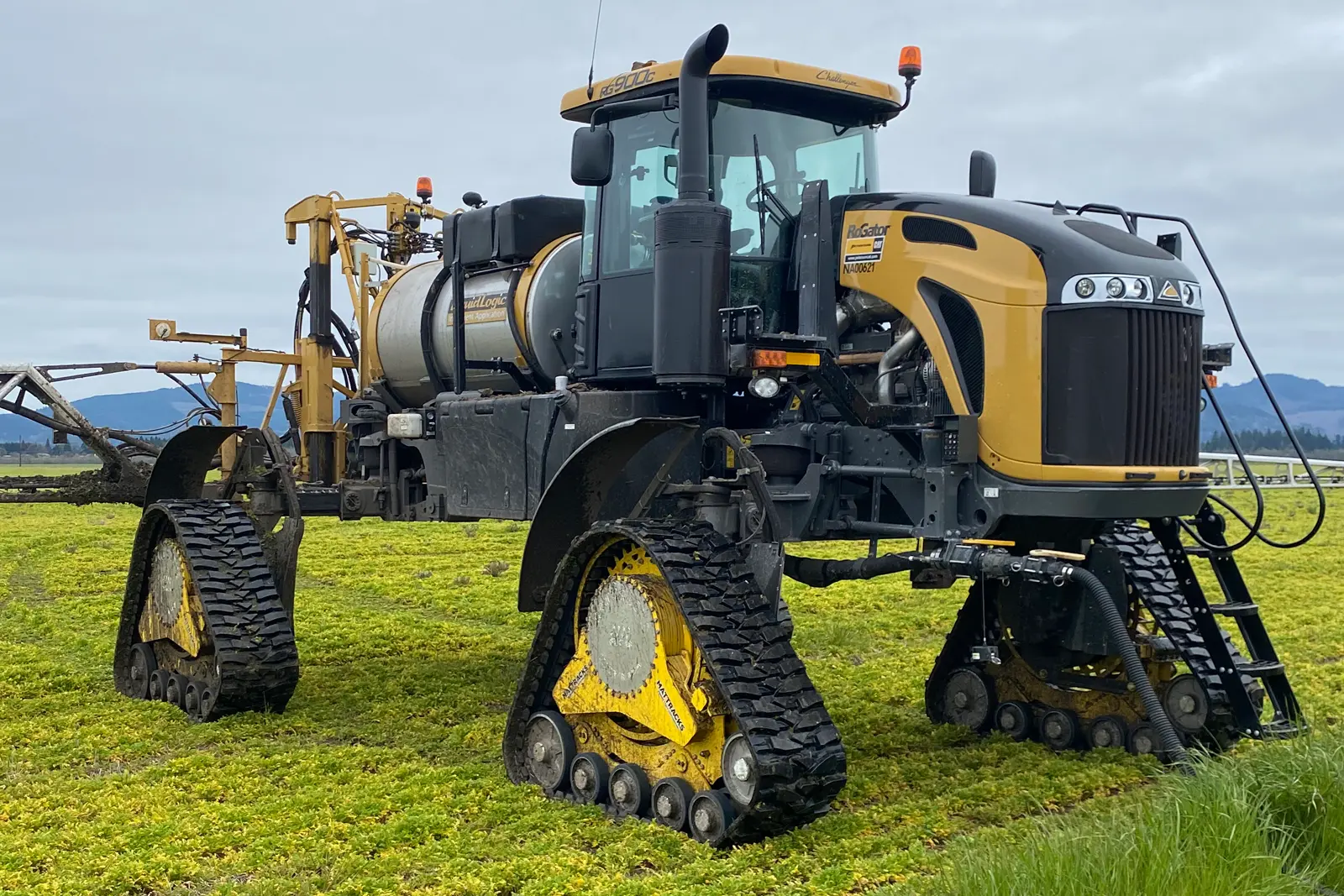

HT 400

The HT 400 is designed for approximately 40,000 lbs gross sprayer weight, most 1,200 gallon and smaller self propelled sprayers

• Cool Track Technology
• Virtually Maintenance free design
• Rubber Mounted Rocker Axles
• Staggered road wheel design to minimize vibration
• 15" track width standard (also available in 20")
• 14 road wheels

RT250 Track

HT 500

The HT 500, with its longer tread and increase carrying capacity, is designed for sprayers weighing in at 50,000 lbs fully loaded, or most 1,400 and 1,600 gallon capacity machines

• Cool Track Technology
• Virtually Maintenance free design
• Rubber Mounted Rocker Axles
• Staggered road wheel design to minimize vibration
• 15" track width standard (also available in 20")
• 17 road wheels

The High Track (HT) Series builds off of Mattracks 10 years of experience in designing and manufacturing tracks for High Clearance Sprayers. The first system was built back in 2014 as the TA8080HD series. A few years later it became part of the Track-tor Assist 9000 series as Mattracks continued to improve on its previous designs. Now with numerous new innovations Mattracks is proud to introduce the HT-400 and HT-500


Mattracks Patent Pending Cool Track Technology (CTT)

  • Cooling fan integrated into track system to cool and extend life of tread
  • Automatic Dry Lubricant Applicator for roading on hard pavement

Increased wheel to track contact area compared to older models

  • Reduces peak pressure on tread, thus reducing heat build up

New and improved internal tread design

  • Maximizes rubber where needed
  • Minimize rubber where not needed
  • Compound improvements to maximize tread life

Virtually Maintenance free design

  • New increased capacity hub bearing utilizing multi-sealed greased bearing
  • Improved seal design on idler wheels
  • Replaced greased rocker axle shafts with rubber mounted design

New Suspension Improvements to minimize vibration and extend life of all components

  • Staggered road wheels
  • Independent rocker design with isolated subrocker
  • Exclusive rubber mounted rocker cross shafts

Specs

HT 400 Sprayers

GVW 40,000 lbs
Frame Steel
GCSA 15" - 4,740 in²
20" - 6,320 in²
Track Width 15" or 20"
Suspension Yes
HT 400 Specsheet

HT 500 Sprayers

GVW 50,000 lbs
Frame Steel
GCSA 15" - 5,532 in²
20" - 7,376 in²
Track Width 15" or 20"
Suspension Yes
HT 500 Specsheet
